Dymo Printer Configuration

Dymo Printer Configuration

After setting up a label printer in VisitorRego, it is important to configure the printer to the correct label size that it uses. This article refers to the Dymo LabelWriter 450 Label Printer.

Drivers for the printer should already be installed. If not, please request them by contacting VisitorRego Support.


To configure the printer, toggle out of VisitorRego to return to the Windows desktop, then open the Printers Preferences window in Devices and Printers.


A shortcut for Devices and Printers may be found on the desktop.



If there is no shortcut, navigate to Control Panel through the Windows Start menu. Under Hardware and Sound click on View Devices and Printers.

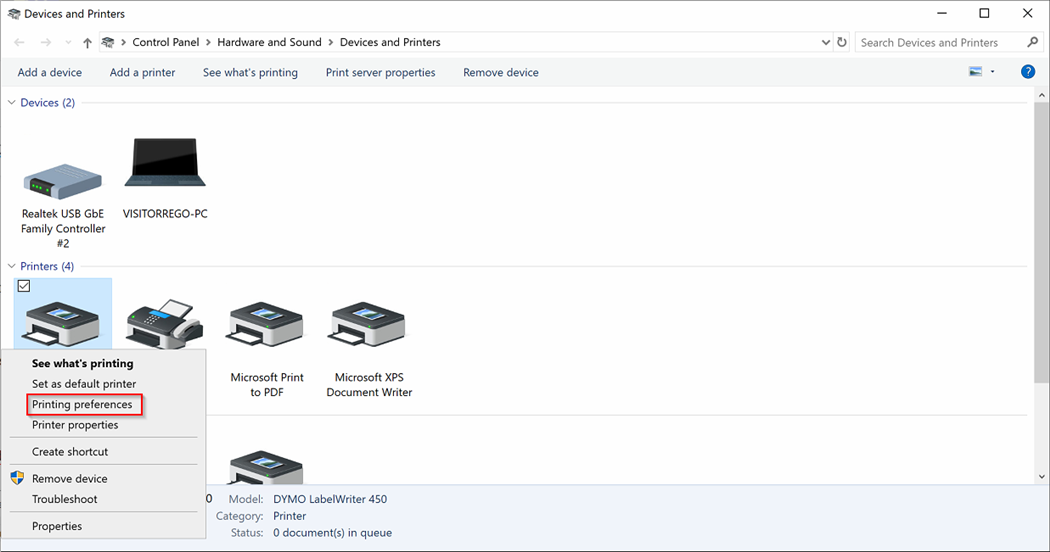

Once in the Devices and Printers window, right click the printer (touch and hold until you get a circle then release on a touch screen) and select Printing Preferences.



Click the Advnced button in the Printing Preferences window.



Under the Paper/Output section, change Paper Size to 99014 Name Badge Label, then click OK then OK to hold the changes.



Click Apply, then OK to exit the Printing Preferences Window.

If the printer is disconnected from its original USB port and reconnected to a different one, Windows will view it as a different printer. If this occurs then the default label printer in VisitorRego will remain as the old printer and the printer settings will revert back to their default values.
